This aluminium Hop-up Chamber ME Sport (with BB Catching System) unit is designed to improve accuracy and ensure consistent air seal for Tokyo Marui, Krytac, KWA and other M4/M16 Standard AEG series weapons.
The Hopup Chamber ME unit has a precision rotary dial design for fine hop-up adjustments, and the hop-up levers and concave nubs have been re-engineered to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot.
The Maxx Model Hop-up Chamber ME unit is designed to accept the nozzle length from 21.00mm to 21.25mm, and is fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs.
The Hopup Chamber ME Housing is equipped with a new CNC Delrin Locking C-Clip design to hold the barrel tight without wobbling and twisting, and 3 compression springs on top, at the bottom and in the centre of the housing to ensure the hop up unit is exactly centred, straight and air tight at all times when adapted to any V2 gear boxes with 11mm or 11.5mm inner bore.
To add to this, the Hop up Chamber ME Sport unit is specially designed with a BB Catching System to prevent dropping BBs after removing the magazine.
***The Dual UV LED Boards and Module set and Single UV LED Board w/ Clear Cover and Module set are optional add-ons to glow BBs in the dark. Operating Voltage from 7VDC - 15VDC (2-4 cells LiPo, 6-13 cells NiCad). (Sold separately) ***
The Empty Magazine Detection Sensor and Electronic Switch Controller are optional add-ons to stop Motor/HPA firing when the magazine is empty. (Sold separately)
***Test results: FPS might be increased from 10FPS to 30FPS over stock setup. Please check your FPS!

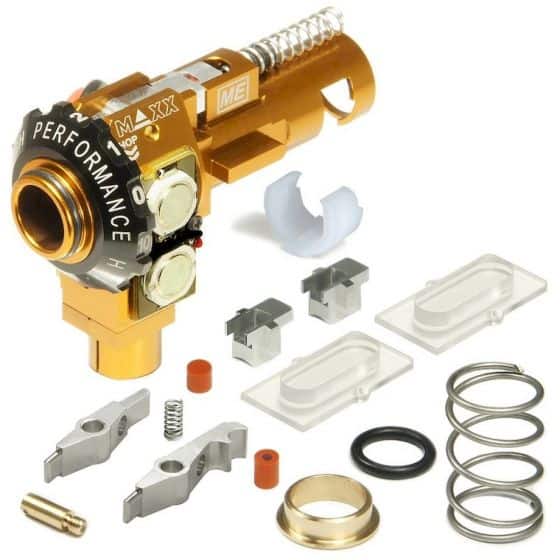

Includes:
- 1 x CNC Aluminum Hopup Chamber ME Sport (with BB Catching System) unit
- 2 x Strong Clear Vinyl Cover set
- 1 x CNC Aluminum Standard-Hop Arm
- 1 x CNC Aluminum R-Hop Arm
- 1 x Silicone Rubber Standard-Hop Nub Damper
- 1 x Silicone Rubber R-Hop Nub Damper
- 1 x CNC Aluminum 4.5mm length Precision R-Hop Concave Nub
- 1 x CNC Aluminum 6mm length Precision R-Hop Concave Nub
- 1 x CNC Delrin Locking C-Clip
- 1 x CNC Barrel Brass Spacer
- 1 x Brass Spacer Holder Oring
- 3 x Steel Compression Spring
Specification:
- Overall Length: 51mm
- Overall Height: 37.75mm
- Hub Outer Diameter (to fit into Gear Box): min 11mm - max 11.5mm
- Hub Outer Diameter (to fit into Outer Barrel): min 12mm
- Hub Inner Diameter (to fit Nozzle): max 8.3mm
- Feeder Outer Diameter (to fit magazine): min 9.25mm
- Feeder Length (to fit magazine): max 6.25mm
- Material: Aluminium 6061
Features:
- Machined from a solid aircraft aluminium block with tight tolerances to provide better accuracy, consistency, and durability
- Improved accuracy and ensure consistent air seal for Tokyo Marui, Krytac, KWA and other M4/M16 Standard AEG series
- Precision rotary dial design for fine hopup adjustments
- Re-engineered hop up levers and concave nubs to work best with R-hop and Standard-Hop to keep the BBs shooting straight and accurate on every single shot
- Removable Brass Threaded Slot Pin for setup and maintenance
- Accepts nozzle length from 21.00mm to 21.25mm
- Fully compatible with most aftermarket soft and hard rubber bucking without losing FPS or dropping BBs
- Equipped with a new CNC Delrin Locking C-Clip design to hold barrel tight without wobbling and twisting
- Equipped with 3 compression springs on top, at the bottom and in centre of housing to ensure the hopup unit is exactly centred, straight and air tight
- Compatible with any V2 gear boxes with 11mm or 11.5mm bore
- Specially designed with BB Catching System to prevent dropping BBs after removing the magazine
- Use proper tools for disassembling and reassembling the gear box with great care due to spring tension
- Bearing lubricant oil/grease is recommended for smooth operation
- Instruction Manuals are included.
